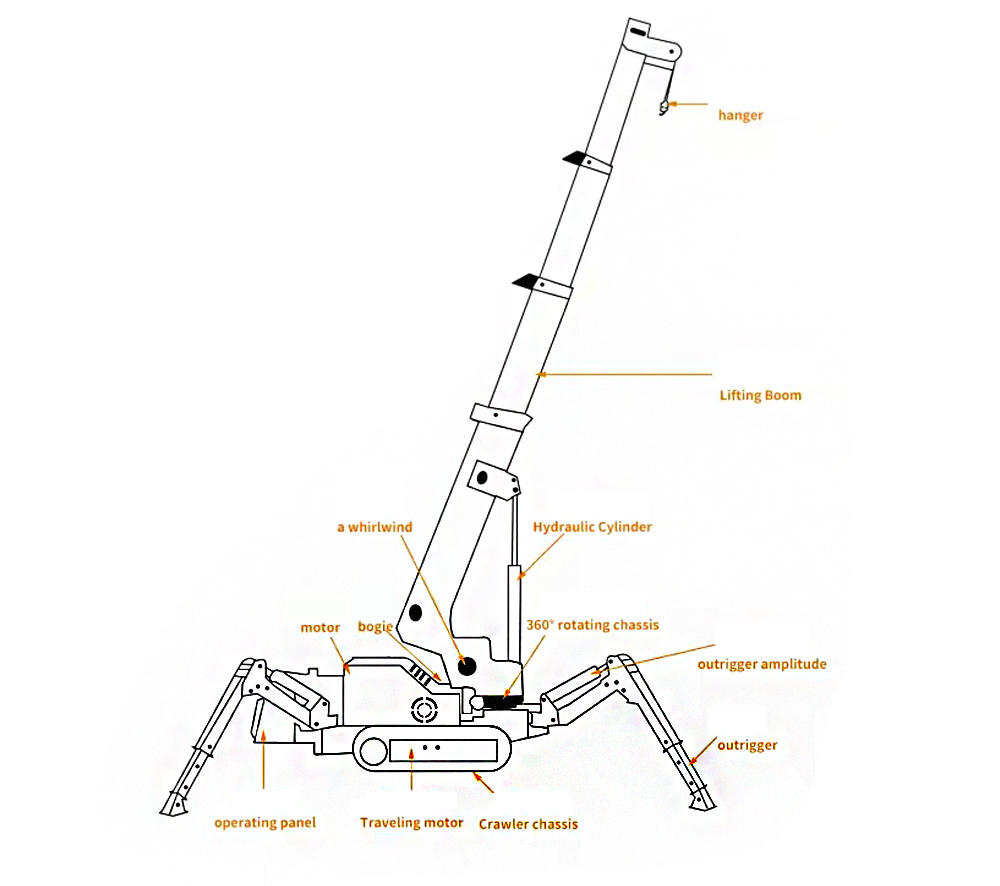

2 Ton Spider Crane
Small size, light weight, compact structure, widely used in small space such as floor roof lifting, substation maintenance, etc.
Rubber tracked chassis, no damage to the ground, adaptable to a variety of surfaces.
The boom is made of high-strength manganese steel for better lifting capacity.
Remote control can be added for easy operation.

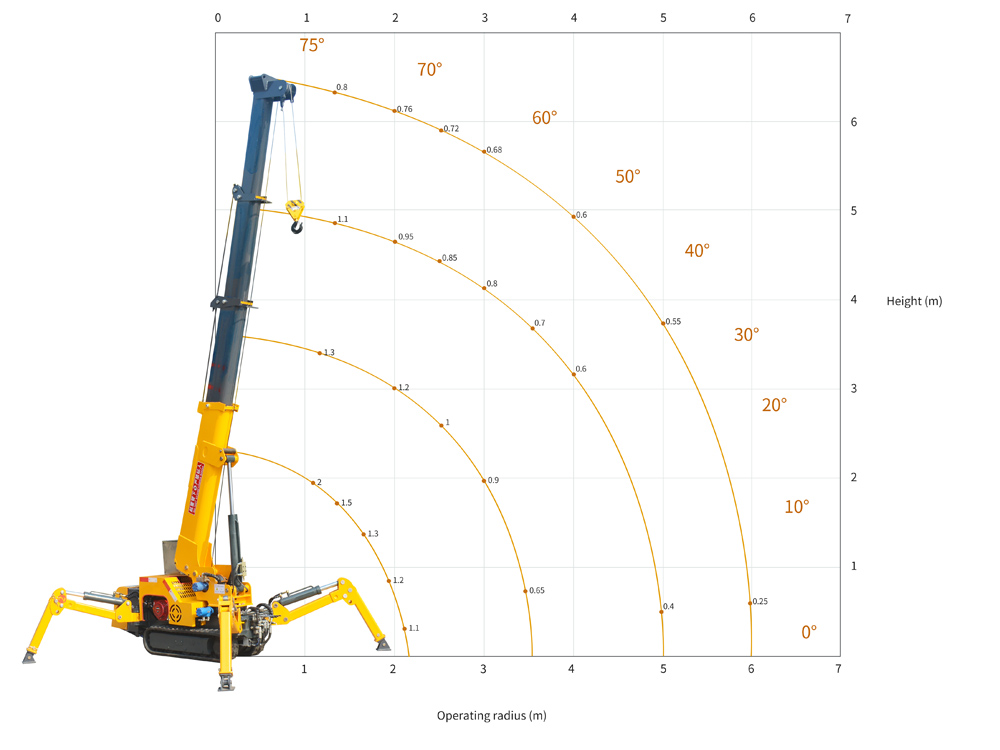

Crane capacity
2t * 1.7m
Max. working radius
6m * 0.3t
Maximum above ground lift
6.3m*0.8t
2 Ton Crawler Spider Crane Basic Parameters
| Item | Specification |
|---|---|
| Maximum Operating Radius | 6m × 0.3t |
| Maximum Head Above Ground | 6.8m × 0.8t |
| Winch | |
| Hook Rising Speed | 0–8 m/min |
| Wire Rope Specifications | 8mm × 45m |
| Telescopic Device | |
| Boom Form | 5-section lifting arm, U-shaped high-strength manganese |
| Boom Length / Time | 1.7m–7.6m / 20sec |
| Heave Device | |
| Boom Angle / Time | 0–78° / 13sec |
| Rotary Device | |
| Rotation Angle / Speed | 0–360° (continuous) / 60sec |
| Running Gear | |
| Way of Walking | Hydraulic motor drive, two speed |
| Walking Speed | 0–2.5 km/h |
| Gradeability | 25° (36%) |
| Engine | |
| Engine | HONDA 9.6 kw |
| Engine Start Mode | Electric start |
| Startup Performance | -5 ~ 40℃ |
| Fuel Consumption Rate | 274 g/kW·h |
| Fuel / Volume | Gasoline / 8L |
| Battery Capacity | 12V 45AH |
| Motor Voltage | AC380V |
| Outrigger Maximum Extension | 4230 (L) × 4070 (R) |
| Operating System | Manual operation + Remote control |
| Standard Configuration | Engine power |
| Length, Width, Height | 2600 × 700 × 1600 mm |
| Weight | 2000 kg |
| Craftsmanship | Paint assembly process |
Crane Options and Accessories

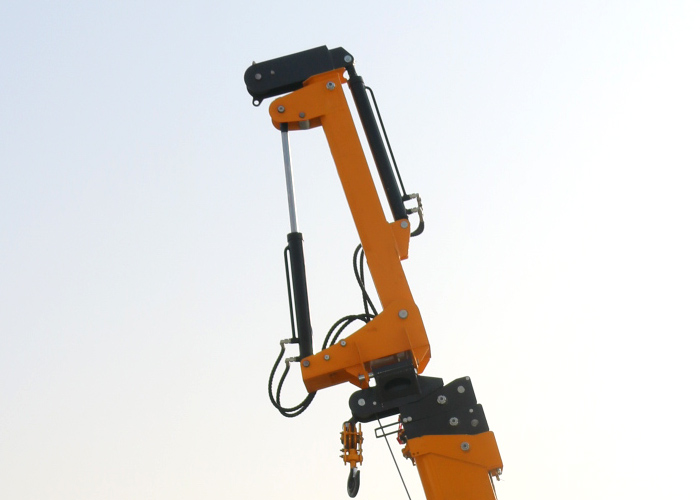

Hydraulic Flying Arm

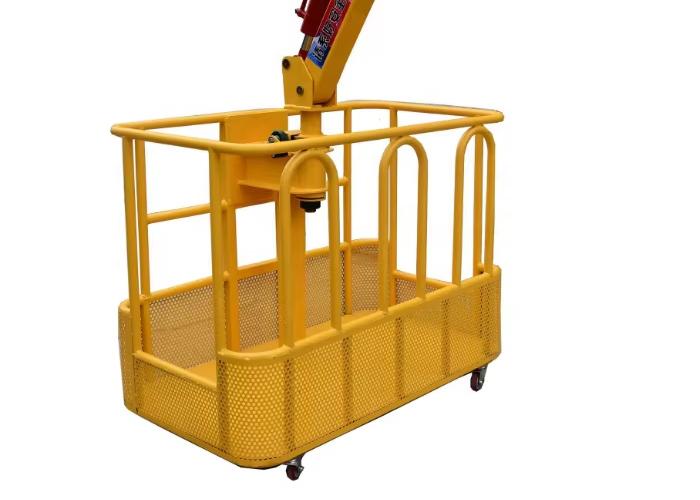

Gondola

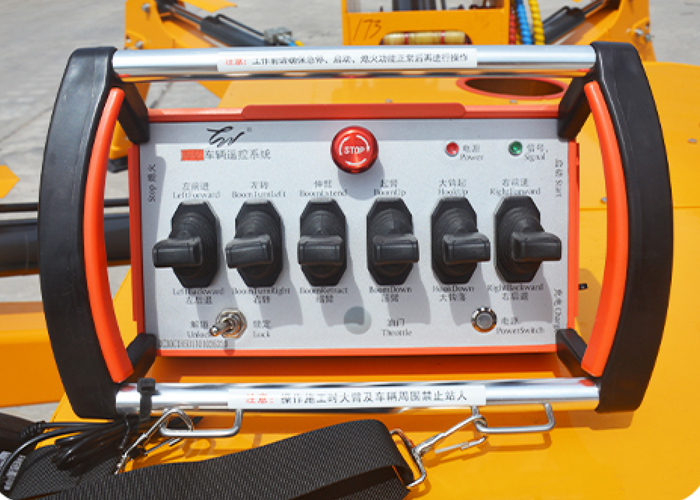

Wireless Remote
