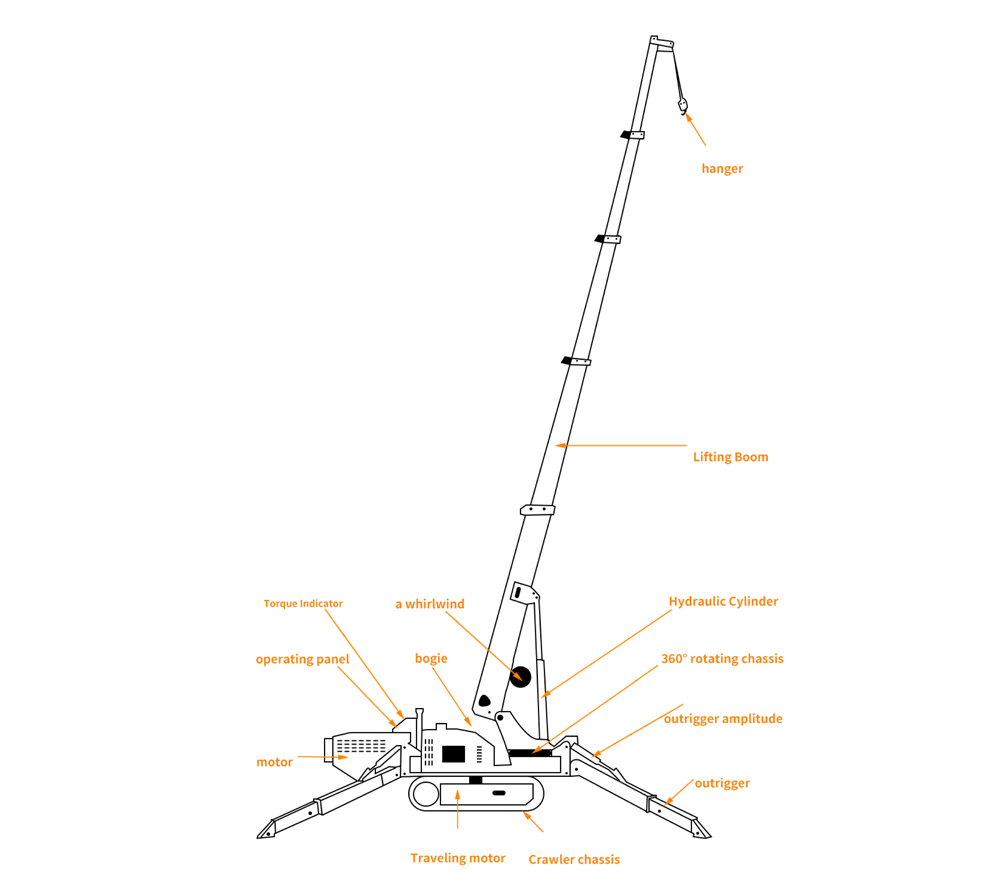

8 Ton Spider Crane
Small size, light weight, compact structure, widely used in small space such as floor roof lifting, substation maintenance, etc.
Rubber tracked chassis, no damage to the ground, adaptable to a variety of surfaces.
The boom is made of high-strength manganese steel for better lifting capacity.
Remote control can be added for easy operation.

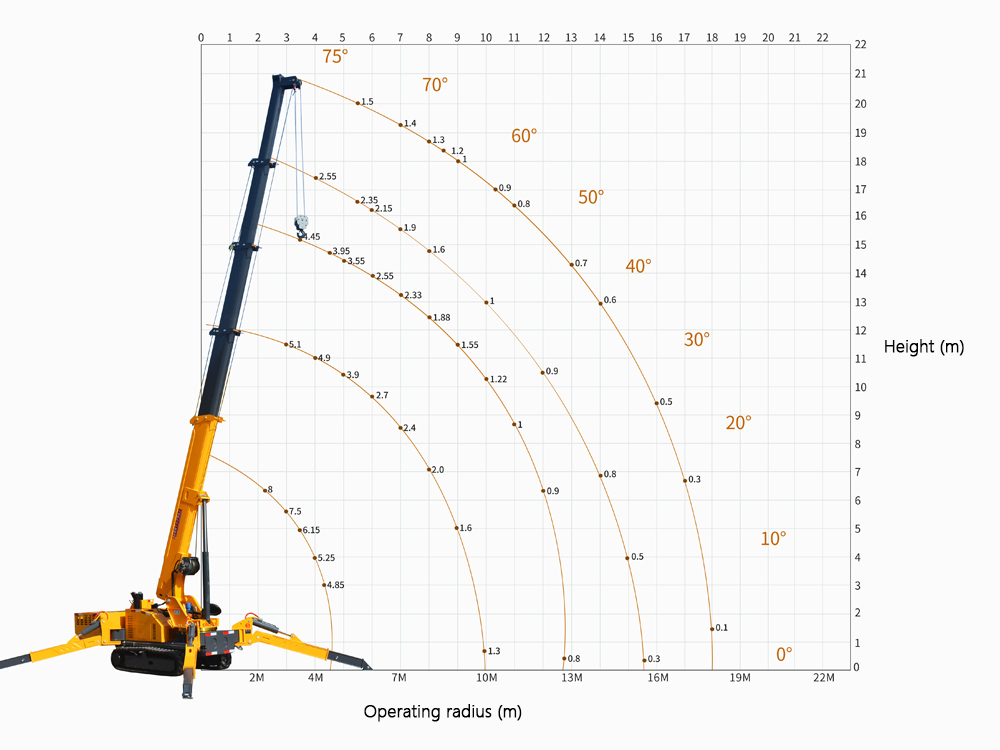

Crane capacity
8t * 4.5m
Max. working radius
16m * 0.2t
Maximum above ground lift
17m*0.9t
8 Ton Crawler Spider Crane Basic Parameters
| Max Working Radius | 16m × 0.2t |
| Max Above Ground Lift | 17m × 0.9t |
| Winch | Hook Speed: 0–10 m/min |
| Wire Rope: Φ10mm × 120m | |
| Telescopic Boom | Boom Type: 5 Sections |
| Boom Length: 4.5m–16m | |
| Luffing | Boom Angle / Time: 0–75° / 13 sec |
| Rotation | 0–360° (continuous) / 60 sec |
| Outrigger | Type: Hydraulic auto support + manual extension |
| Max Extension (mm): 6300 (L) × 4600 (Rear & Front) | |
| Travel System | Drive Mode: Hydraulic motor, 2-speed (rubber track) |
| Speed: 0–5.5 km/h | |
| Gradeability: 20° (36%) | |
| Electrical | Voltage: AC380V |
| Engine | Manufacturer: Yunnei |
| Model / Displacement: YN27GBZ / 2.7L | |
| Start Mode: Electric | |
| Start Performance: -5°C ~ 40°C | |
| Fuel / Tank: Diesel / 45L | |
| Battery: 24V 45AH | |
| Fuel Consumption: 230g/kW·h | |
| Noise Level | ≤81.5 dBA (1m) |
| Operation System | Manual operation (boom/outrigger) + manual walking + remote control (optional) |
| Standard Configuration | Diesel + Electric dual power |
| Machine Size | 4950 × 1560 × 2235 mm |
| Surface Treatment | Powder coating |
Crane Options and Accessories
Hydraulic Flying Arm
Gondola
Wireless Remote
